Between bearing Centrifugal Pump Solution (BB series) - Objective
To design a centrifugal pump with a high flow rate of 400 CMH, head of 52 m and power of 60 KW for stored the clean water in reservoir from the river. The design type is double suction with horizontal split casing assembly.
Conclusion

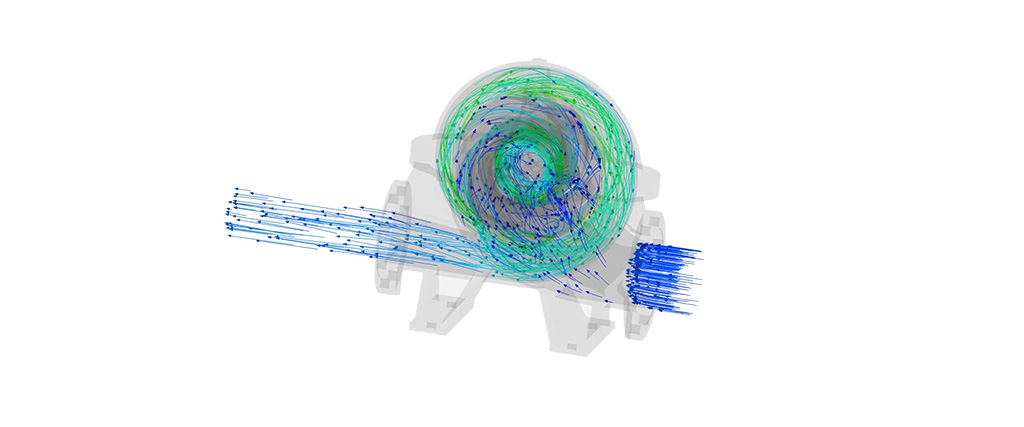

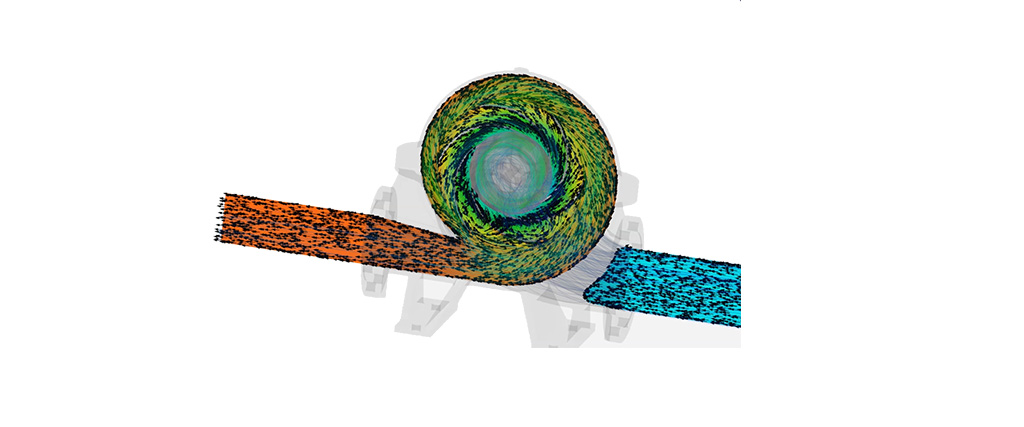

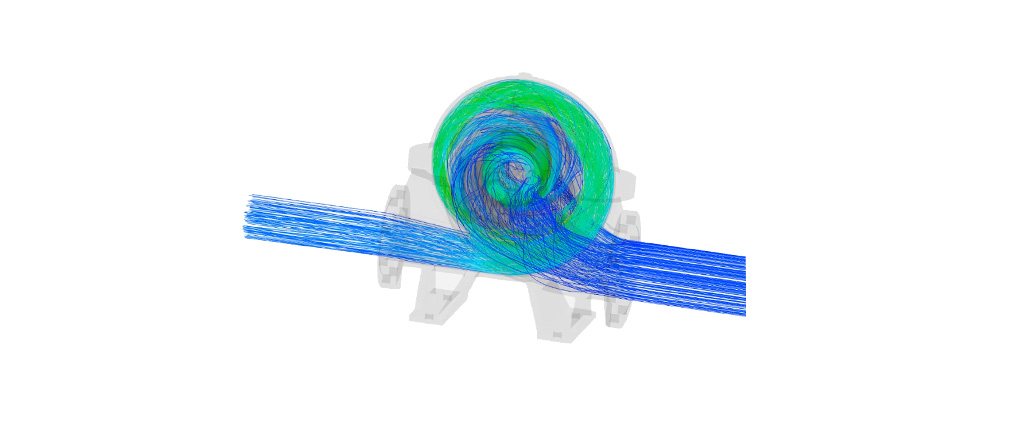

- Design, Analysis & Optimization was successfully carried out.
- CAD Modelling was developed after optimization.
- Casting and machining drawing of final model components.
- Assembly Diagram Submission(GAD/GDNT)
